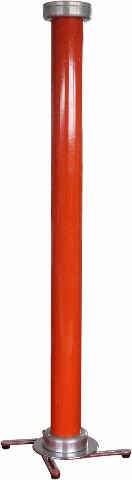

ZGSF-C series voltage divider (can be customized according to customer requirements)
Scope of application
It is used for the field measurement of power system and the measurement of AC or DC high voltage in the laboratory of colleges and universities.
Performance characteristics

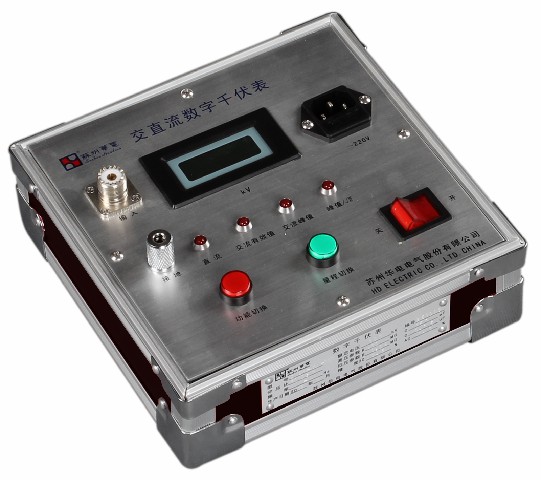

The split body is used to separate the high-voltage measurement part and the low-voltage display part, which is safe and reliable in work. The aluminum alloy box is packed in a portable structure, and is very convenient to use and carry.
Technical index:
model | ZGSF-Z-50 | ZGSF-Z-100 | ZGSF-Z-200 | ZGSF-Z-300 | ZGSF-Z-400 | ||
AC | 50 | 100 | 200 | 300 | 400 | ||
DC | 50 | 100 | 200 | 300 | 400 | ||
Voltage display range | 0~1.2 times rated voltage | ||||||
Precision | AC: Class 1.0 DC: Class 0.5 | ||||||
Voltage divider impedance | AC/pF | 250 | 150 | 75 | 50 | 37.5 | |
DC/MΩ | 240 | 400 | 800 | 1200 | 1600 | ||
Partial pressure ratio | 3000:1 | 5000:1 | 10000:1 | 15000:1 | 20000:1 |
