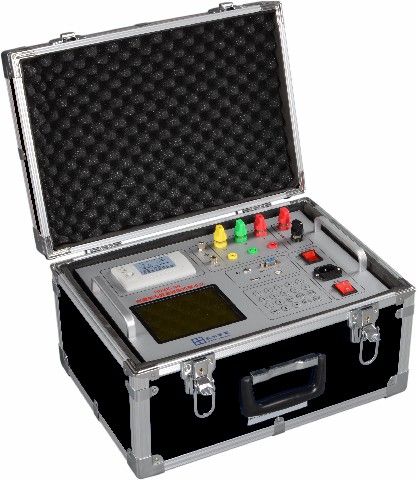

HDZK-10 Transformer Low Voltage Short Circuit Impedance Tester


Scope of application

Used for low-voltage short-circuit impedance measurement of 35KV and above main transformers under field and laboratory conditions


Performance characteristics

(1) It can measure transformer short-circuit impedance, short-circuit reactance, and three-phase impedance voltage;

(2) The voltage, current, power, frequency and other parameters of each test can be displayed;

(3) Automatic frequency correction can eliminate errors caused by frequency fluctuations;

(4) Built-in non-power-off memory, which can store thousands of measurement results and save measurement data for a long time.


Technical index


Measuring range

Voltage

20V250V

Current

0.2A10A

Accuracy

Voltage, current, impedance

0.2level

power

0.5level

Ambient temperature

-10℃~40

environment humidity

Relative humidity <85% non-condensing

Power supply

AC220V±10%  50±1Hz
